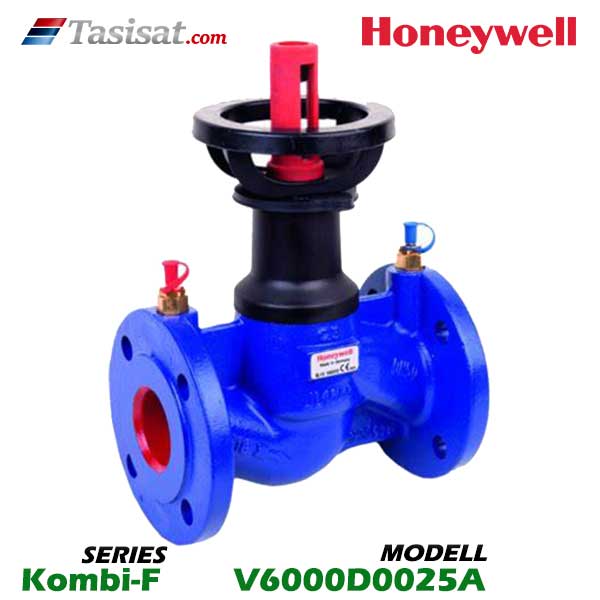

شیر بالانس استاتیک هانیول سری Kombi-F-II & Kombi-F مدل V6000D0025A

V6000A Kombi-F-II, Kombi-F

FLANGED BALANCING AND SHUTOFF VALVE WITH  SAFECONTM  MEASURING CONNECTIONS

Application

The hydronic balance is a significant requirement for the effi- cient operation of a hydronic heating or cooling installation. In an unbalanced system under or over provision of hot water to individual radiators or circuits can occur. Apart from the correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as in DIN 18 380, VOB part C, required by national standards .

This requirement is met with Kombi-F-II and Kombi-F shutoff and balancing valves .

Kombi-F-II and Kombi-F have functions shut-off, pre-setting and measuring .

Features

* Balancing through stroke limitation with digital pre- setting and visible pre-setting indicator

* Equipped with 2 pressure test cocks for differential pres- sure measurement (DN25. DN400)

* Non rising spindle with EDD (double sealing system)

* Pre-setting isn`t altered when handwheel is turned

* PTFE-seat sealing

* Spindle made of stainless steel

* Valve body made of corrosion resistant cast iron

* Available in dimensions up to DN400

Design

• Valve body with flanges PN16 drilled to DIN EN 1092-2
• Valve insert with handwheel and pre-setting display
• 2 SafeConTM measuring connections on ..DN400
• Without measuring connections on DN15 and DN20

Materials

• Valve housing made of cast iron GG25 BL1040 / BS1049, painted blue
• Valve insert made of stainless steel with seat sealing made of PTFE
• Pressure test cocks made of brass
• Handwheel made of PA6 DN65
• Fairing made of plastic PA6, black

Specifications

Medium                                    Water, water-glycol mixture

Operating temperature         -10…120°C (14…248°F) short run 130°C (266°F)

Operating pressure                max. 16 bar (232 psi)

kvs (cvs)-value                        see table below and flow diagrams

NOTE: The valves are designed for application not influ- enced by weather.
For application outside or in adverse environments like corrosion-promoting conditions (sea water, chemical vapours, etc.) specail constructions or protective measures are recommended.

Please Note:

• To avoid stone deposit and corrosion the composition of the medium should conform with VDI-Guideline 2035
• Additives have to be suitable for EPDM sealings
• System has to be flushed thoroughly before initial operation with all valves fully open
• Any complaints or costs resulting from non-compliance with above rules will not be accepted by Honeywell
• Please contact us if you should have any special require- ments or needs

Dimensions  and  Ordering Information

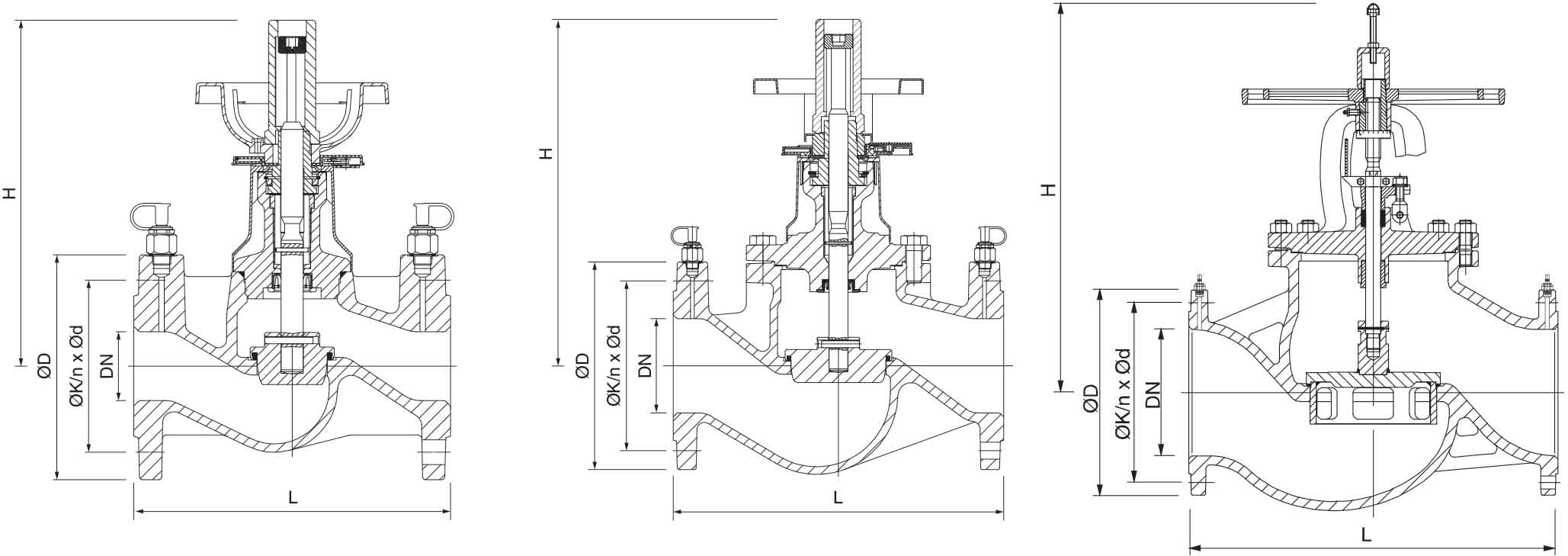

Fig. 1.  Dimensions DN 15* – DN 80                                Fig. 2.  Dimensions DN 100 – DN 200                            Fig. 3. Dimensions DN 250 – DN 400

Table 1. Dimensions Kombi-F-II

DN	(R)	kvs(cvs)-value	L	H	Æ D	Æ K	n x Æ d	Gewicht	OS-No.
15*	1/2”	4.50 (5.27)	130	215	95	65	4 x 14	3.5 kg	V6000D0015A
20*	3/4”	6.60 (7.72)	150	215	105	75	4 x 14	4.1 kg	V6000D0020A
25	1”	9.80 (11.5)	160	215	115	85	4 x 14	4.8 kg	V6000D0025A
32	11/4”	15.1 (17.7)	180	215	140	100	4 x 18	6.6 kg	V6000D0032A
40	11/2”	24.9 (29.1)	200	255	150	110	4 x 18	9.0 kg	V6000D0040A
50	2”	48.5 (56.7)	230	255	165	125	4 x 18	11.5 kg	V6000D0050A
65	21/2”	74.4 (87.0)	290	315	185	145	4 x 18	18.5 kg	V6000D0065A
80	3”	111 (130)	310	335	200	160	8 x 18	24.5 kg	V6000D0080A
100	4”	165 (193)	350	370	220	180	8 x 18	40.0 kg	V6000D0100A
125	5”	242 (283)	400	400	250	210	8 x 18	79.0 kg	V6000D0125A
150	6”	372 (435)	480	450	285	240	8 x 22	91.0 kg	V6000D0150A
200	8”	704 (824)	600	540	340	295	12 x 22	170 kg	V6000D0200A

NOTE:   All dimensions in mm unless stated otherwise.

* DN15 and DN20 without pressure test cocks .

Table 2.  Dimensions Kombi-F

DN	(R)	kvs(cvs)-value	L	H	Æ D	Æ K	n x Æ d	Weight	OS-No.
250	10”	812 (950)	730	785	405	355	12 x 26	265 kg	V6000D0250A
300	12”	1.380 (1.615)	850	890	460	410	12 x 26	360 kg	V6000D0300A
350	14”	1.651 (1.932)	980	1035	520	470	16 x 26	535 kg	V6000D0350A
400	16”	2.383 (2.771)	1.100	1050	580	525	16 x 30	765 kg	V6000D0400A



Accessories

Measuring Equipment

Measuring adapter (2pcs.)

  for measuring computer VM241       VA3600C001

Spare Parts

Spare set of 2 pressure test cocks G1/4″

    for DN25…DN400                       VS2600C001

VM242A BasicMes-2 handheld measuring computer

  For all sizes. Computer is supplied with case and accessories        VM242A0101

Red stroke indicator

   DN15…DN50                              VS4600A015

For all sizes. Computer is supplied with case and accessories   VM242A0101

DN65…DN125                            VS4600A065

DN150…DN200                         VS4600A200

NOTE: To connect the VM241 BasicMes to SafeConTM pressue test cocks please order measuring adapter VA3600C001 separately.

Extension piece for pressure test cocks, length 45 mm, for insulated valves

      for all dimensions                       VA2601A008



Insulation shells

for valves DN65                                  101065

for valves DN80                                  101080

for valves DN100                                101100

for valves DN125                                101125

for valves DN150                                101150

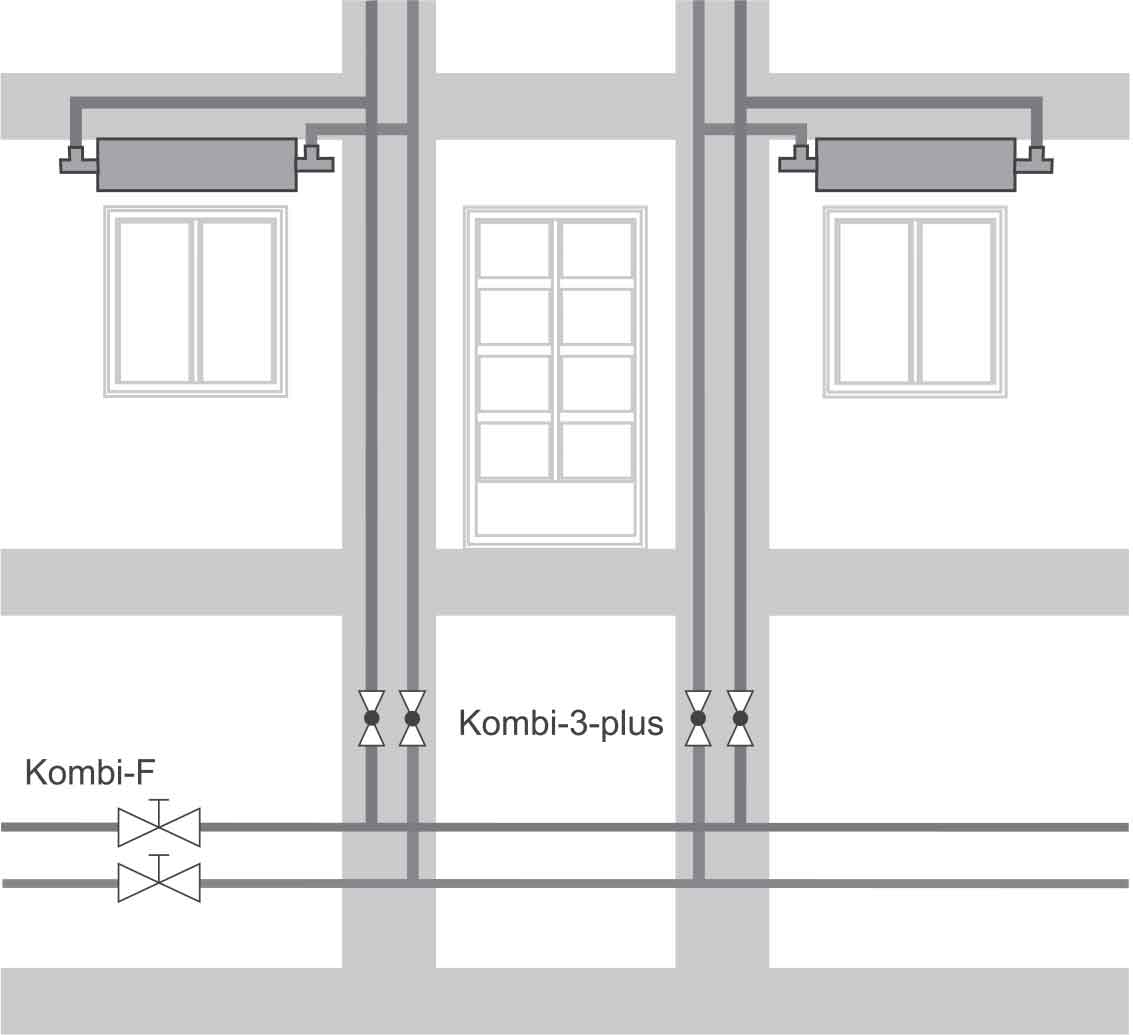

Installation Example
